Dental Implant Surgical Handpiece Osteotomy Straight Head 1:1 Micro Surgery
Caution：
Please clean, lubricate and disinfect the hand piece immediately after using and then sea led storage. If the blood inside the hand piece is not cleaned inti me, it will cause the blood to clot and rust. This can cause the handpiece to malfunction, and also may occur burn caused by high temperature.
Application:
For dental implant,orthopedic surgery,otolaryngology department and surgical operation.

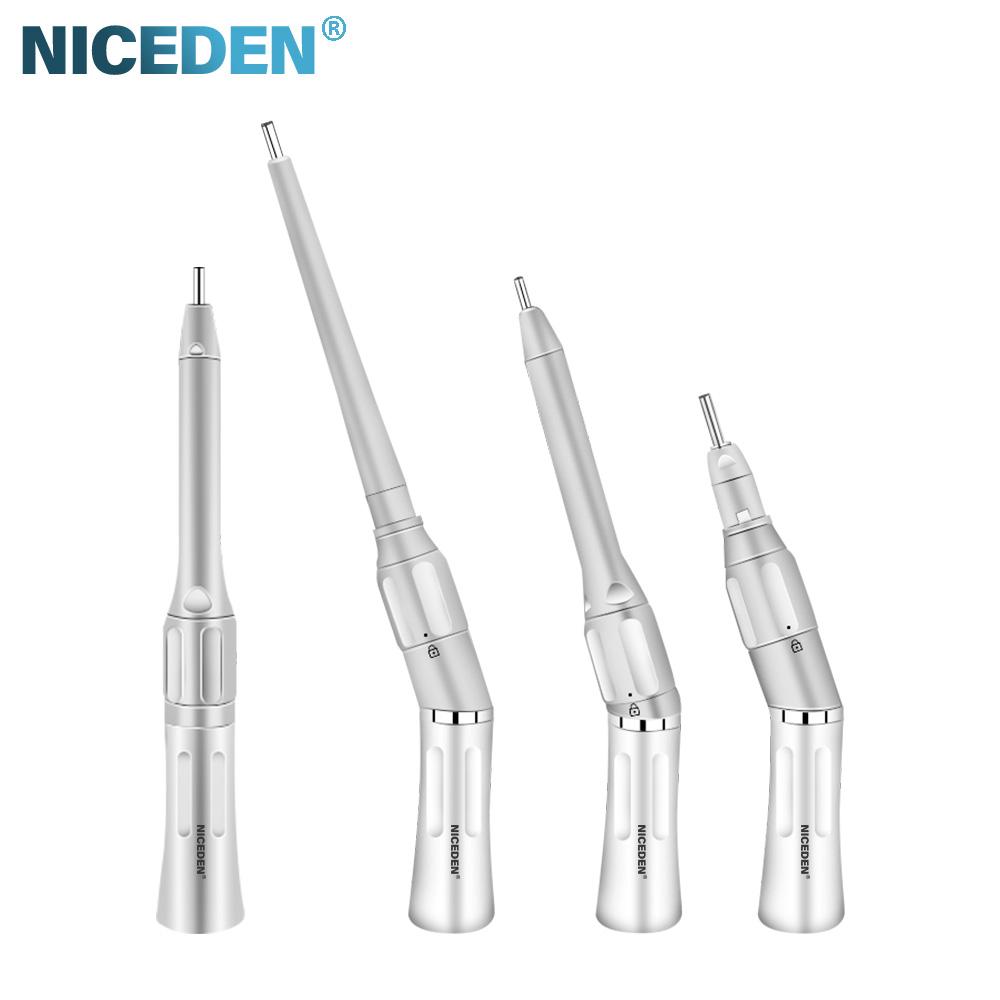

Straight Handpiece Model:
DT-SH45:Head Length 45cm Matched with Bur Length ≥ 40mm
DT-SH70:Head Length 70cm Matched with Bur Length ≥ 40mm
DT-SH100:Head Length 100cm Matched with Bur Length ≥ 40mm
DT-SH120:Head Length 120cm Matched with Bur Length ≥ 100mm
Contra-angle Handpiece Model:
DT-CA45:Head Length 45cm Matched with Bur Length ≥ 40mm
DT-CA70:Head Length 70cm Matched with Bur Length ≥ 40mm
DT-CA100:Head Length 100cm Matched with Bur Length ≥ 40mm
DT-CA120:Head Length 120cm Matched with Bur Length ≥ 100mm
Technical Specification
Type: Contra-angle handpiece(DT-CA45 ,DT-CA70，DT-CA100 and DT-CA120) / Straight handpiece (DT-SH45 ,DT-SH70，DT-SH100 and DT-SH120)
Bur Length: ≥ 40mm or ≥100mm
Ratio: 1:1
Working Air Preassure: 0.3 Mpa-0.35Mpa
Rotaton Speed: ~40000rpm
Bur Applicable: Φ2.34-Φ2 .35
Noise: ≤65dB
Connection Type: Compatible with Standard E-type Motor (NSK ,KAVO,W)
Bearing: Ceramic bearings
External irrigation System
Package with:
Osteotomy Contra-angle handpiece/Straight handpiece *1
External water injection nozzle* 1
E-type spray nozzle* 1
Test Bur*1
Operation manual *1
Regular Maintenance:
1.Hand piece needs to be checked and maintained every three months.
Bur: Please check the bur installed and removed normally.
Operation:Please check for vibration, noise, overheating and other abnormal phenomena .
2.Operating conditions:
It should be operated at an ambient temperature of 10-35°C and humidity of 30%-75%.
3.Storage conditions:
Products should be stored in ad ry, stable environment, which the ambient temperature of -10oc- 50°C, humidity of 10%-85%, and atmospheric pressure of 500hPa- 1060 hPa.
