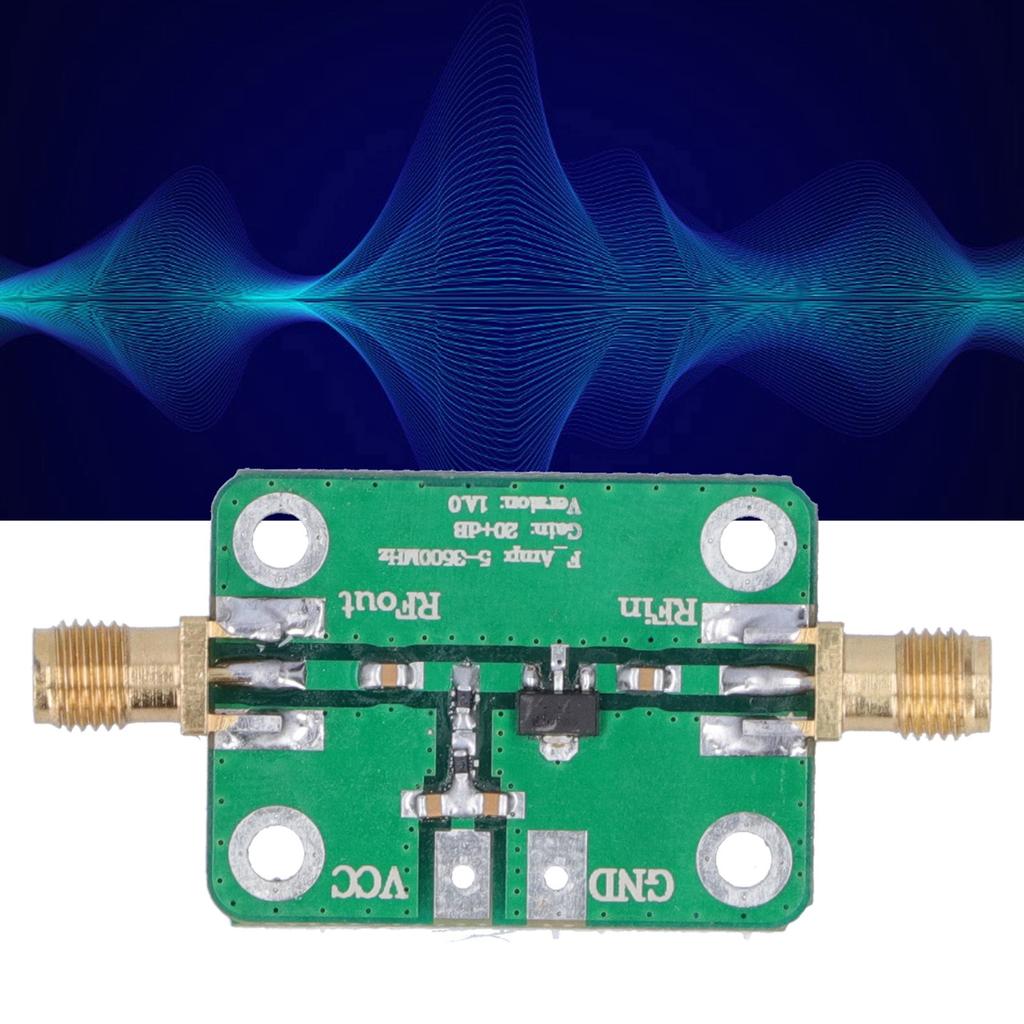

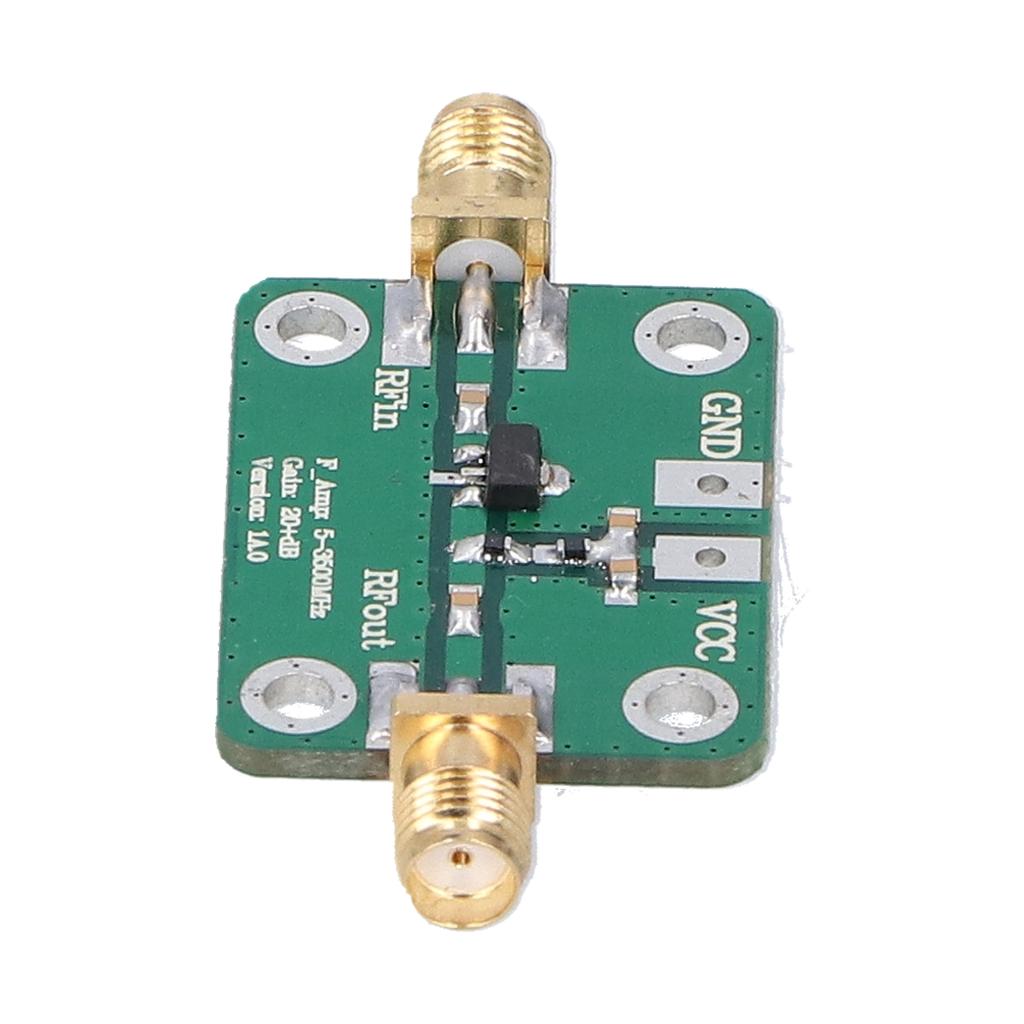

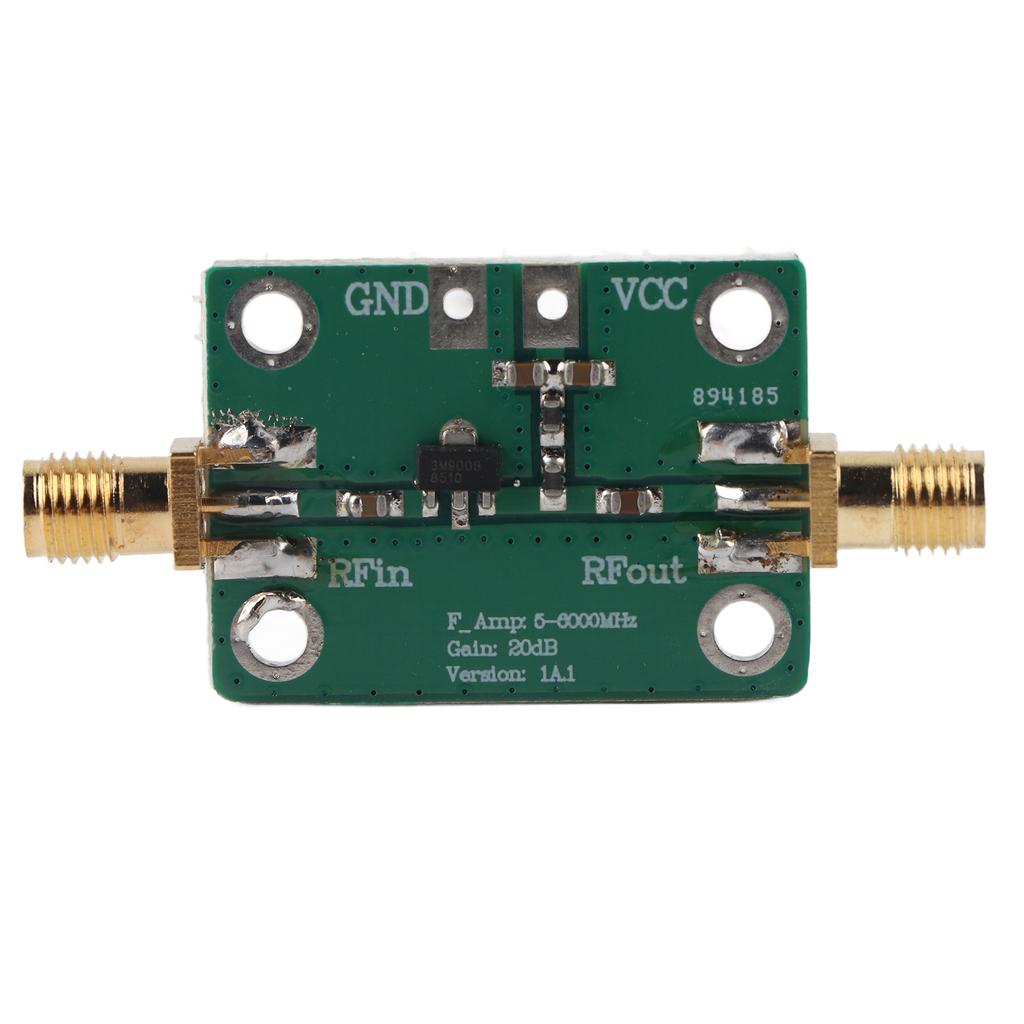

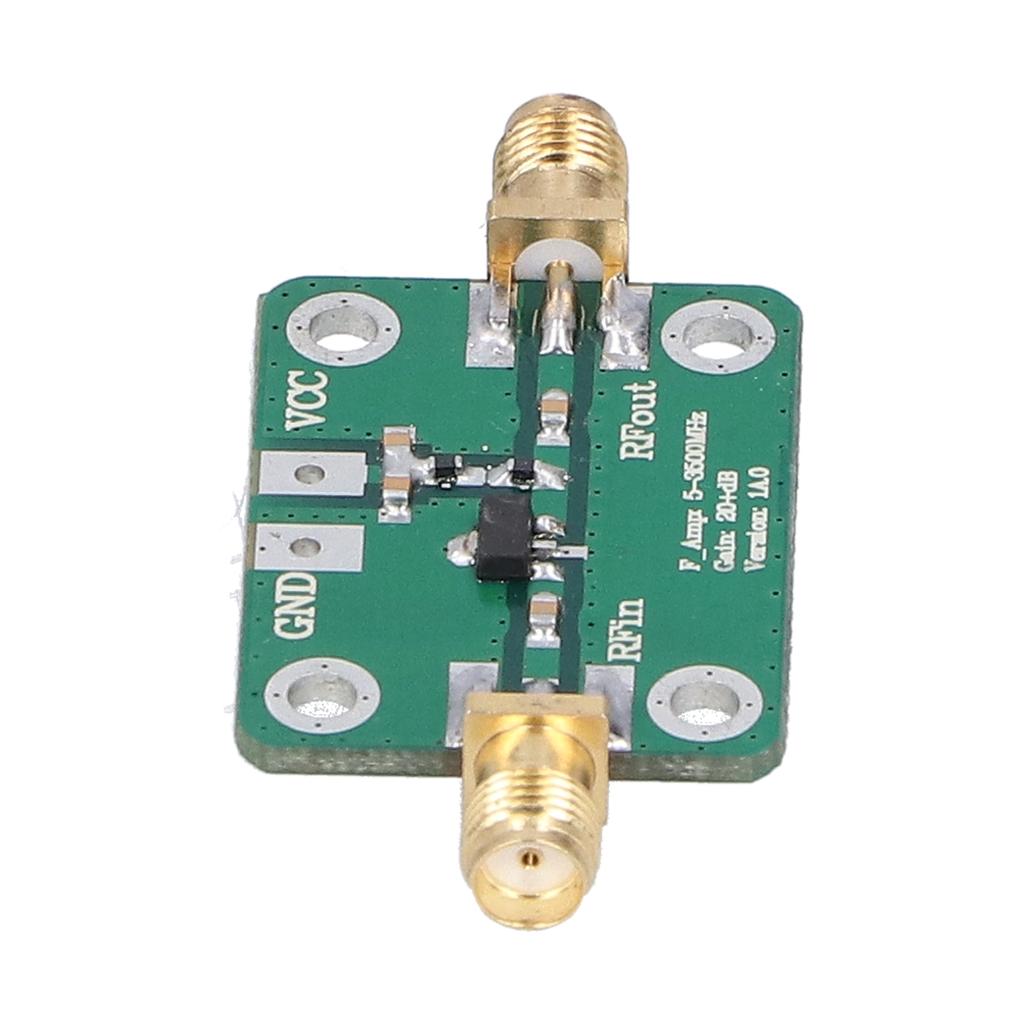

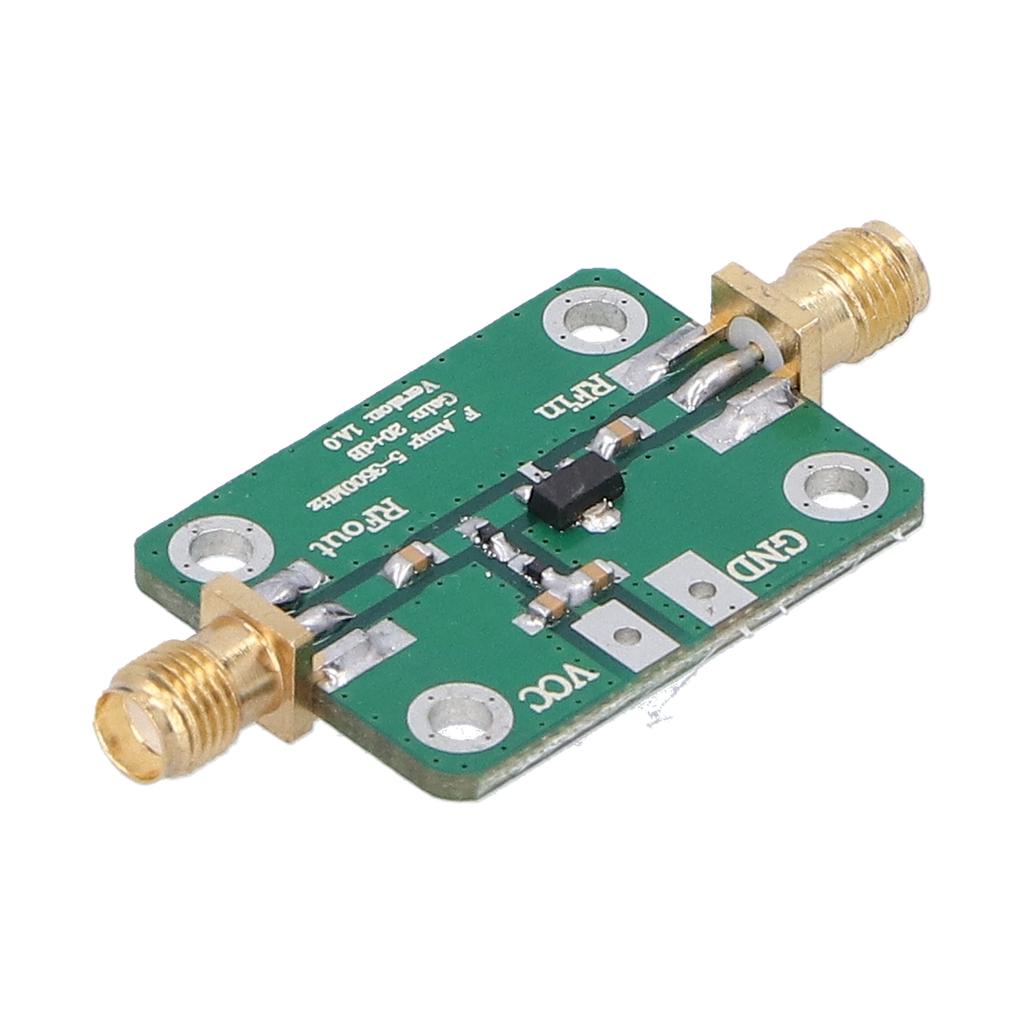

Low Noise Amplifier Module LNA RF Power Wideband ‑6000MHz 20dB Gain Electronic Components

Feature:1. The cascade is adopted to that the amplifier has a lower noise figure while enhancing the gain of the amplifier 2. Used for low-noise amplification of various radio frequency signals to increase the receiving effect 3. Lower band gain is higher, high band has a little drop, so the product is practical 4. One‑piece molding without burr, bring smooth with simple installation . Low noise amplifier module possess stable structure and high performance Specification:Item Type: Low Noise Amplifier Material: PCB Operating Frequency: -6000MHz Amplification Gain: 20dB (typical value) Noise Figure: 1.3 (typical value) Amplifier Gain: F=5MHz gain=23dB F=30Mhz gain=23dB F=100MHz gain=23dB F=150Mhz gain=23dB F=420MHz gain=22dB F=1500MHz gain=20dB F=3000MHz gain=18.7dB F=3500MHz gain=17.6dB Maximum Output Power: +20dBm (100mW) at 1dB compression point Working Current: 80mA (5V) Power Supply Voltage: 3.3-6VDC System Impedance: 50 ohm Package List:1 x Low Noise Amplifier Note:Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
