Features:
Functions : AC voltage, DC voltage, beep on/off, resistance, frequency, breakpoint detection,
ambient temperature, zero/fire wire recognition.
In a commercial environment, it can handle the demands of working long hours,
from a durable look to a wide range of heavy-duty functions.
This is a smart and convenient way to test.

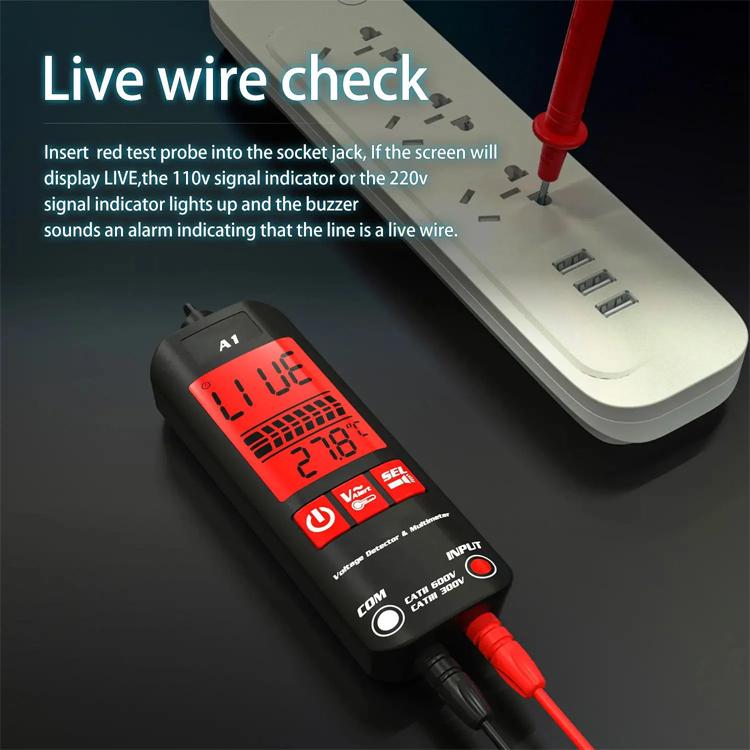

Insert red test probe into the socket jack, if the screem will display LIVE, the 110V signal indivator
or the 220V signal indicator lights up and the buzzer sounds an alarm indicating that the line is a live wire.

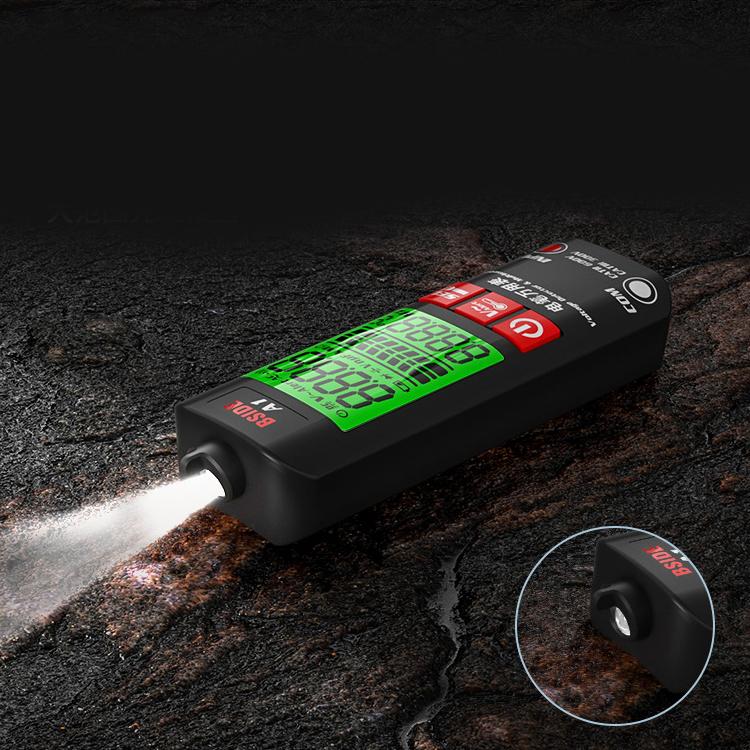

With LED lights, easy to work in the dark.

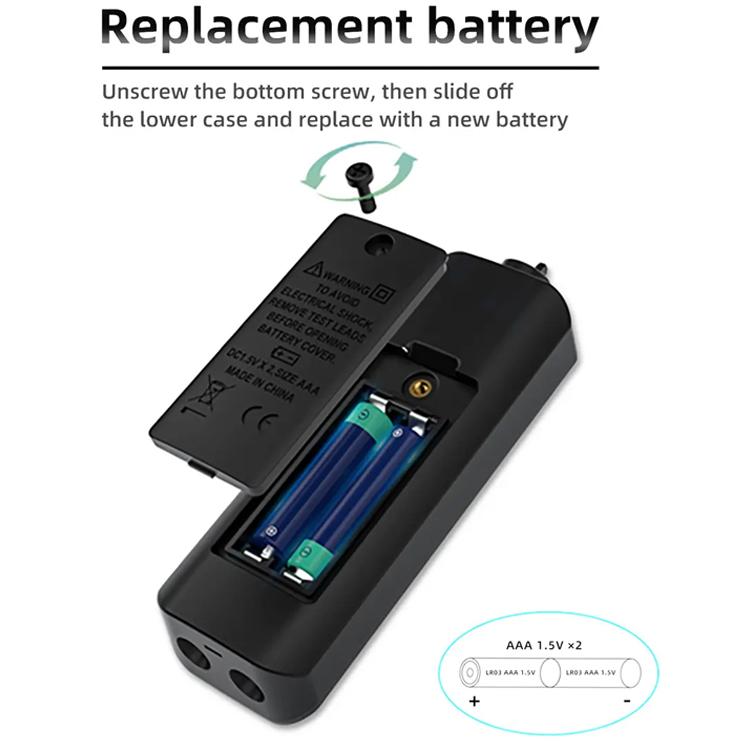

The battery can be replaced on the dashboard by unscrewing the bottom screw,
then sliding the shell off and replacing the battery.
Automatic anti-scald intelligent digital multimeter, simple operation, easy to check circuit fault
and troubleshooting wiring fault.
Power-on directly measures AC and DC voltage resistance and is turned on/off without changing gears.
The tip of the head automatically senses neutral and active lines.
Specification:
100% brand new with high quality
Dc voltage: Range: 500V, Resolution: 0.1V, Accuracy: ±(0.8%+3)
Ac voltage: Range: 500V, Resolution: 0.1V, Accuracy: ±(1.2%+5)
Resistance: Range: 10 mpa, Resolution: 1Ω, Accuracy: ±(1.2%+3)
Voltage Frequency: Range: 1000Hz,resolution: 0.1Hz, Accuracy: ±(2.0%+3)
Buzzing on and off: When resistance is measured
Non-contact voltage detection alarm: 6V~1000V AC voltage
Maximum display value: 2000 digital, fireline discrimination
Automatic shutdown time: about 5 minutes, flashlight
Operating temperature and humidity: 0~40°C (
The storage temperature and humidity ranges: from 10 °C to 60°C (
Power supply: 1.5V AAA battery x2
Package Included:
1 x Intelligent Digital Multimeter
Note:
The colors may be a little difference for the different monitor display.
Please check as much as possible to make sure the item is the one that you need.
Please allow 0.5-1 inch difference due to manual measurement.(1inch=2.54cm)
