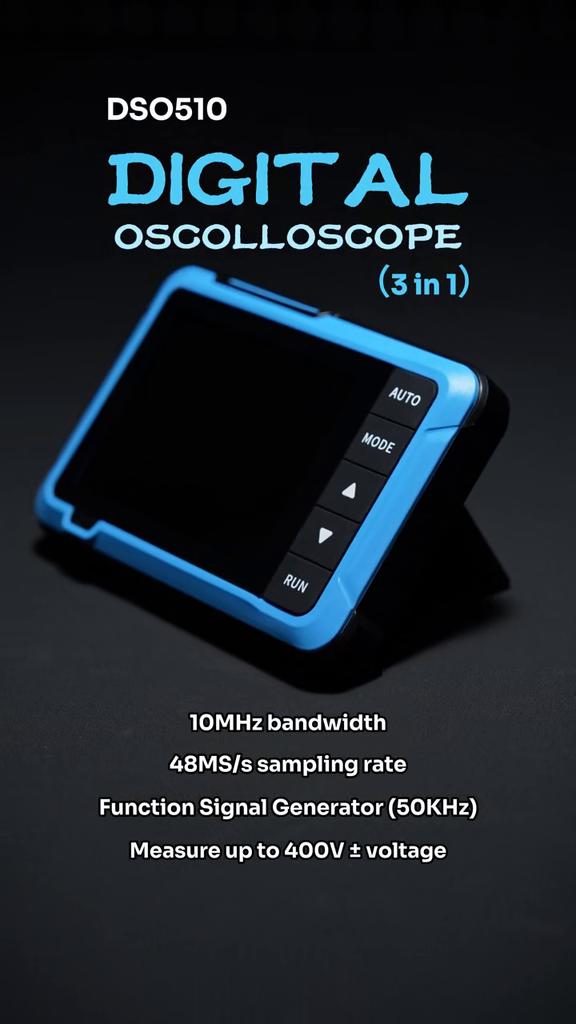

DSO510: High-Performance Flagship Model
The DSO510 is a powerful measurement tools, offering advanced performance suitable for complex signal testing, research, and development. This model is an excellent choice for professionals handling intricate repairs or education environments requiring precise measurements.
Real-time Sampling Rate: 48MS/s
Bandwidth: 10MHz
Signal Type Support: Periodic analog signals and non-periodic digital signals
Trigger Modes: Single, Normal, Auto
Voltage Measurement Range: ±400V
Signal Generator: 50KHz
Key Features:
One-Click AUTO Mode: Displays waveforms instantly without complex adjustments.
HD LCD Screen: 2.8-inch display with 320×240 resolution.
Battery Life: Built-in 1000mAh lithium battery supports up to 4 hours of continuous use.
Recommended Use: Ideal for advanced repairs, development, and education projects.
DSO510 2 IN 1 —— 10MHz Bandwidth
Channel：1
Sampling rate：48MSa/s
Vertical sensitivity：10mV/Div-20V/Div（Progress according to the 1-2-5 way）
Time base range：50ns/Div-20s/Div（Progress according to the 1-2-5 way）
Voltage range：X1:士40V (Vpp:80V) X10: 士400V (Vpp :800V)
Trigger method：Auto / Normal / Single
Coupling method：AC/DC
* Signal Source*
Frequency：0-50KHz
Duty cycle：0-100% (rectangular and sawtooth waves)
Amplitude：0.1-3.0V
Waveforms：Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti step wave, exponential rise, exponential drop, DC signal,
multi tone, Sink pulse, Lorentz wave.
* Other Parameters *
Display：2.8 inches/PPI:320*240
USB charging：5V/1A
Lithium battery capacity：1000mAh
Size：99x68.3x19.5mm
Weight：104g
