Feature:
1. With Screen: GSM caller comes with a screen so you can clearly see the data, reverse polarity signals, and can be connected to billing devices or use computer billing devices.
2. Support Voice Service: Use this terminal to make local, national and international calls by connecting to a regular wired desk phone and a standard SIM card.
3. Strong Signal Reception: GSM ID dialer is easy to install, simple to operate, strong signal reception, clear call settings, long service life and stable performance.
4. Multi Group IP Setting: Fully automatic IP function, multi IP setting, using GSM 4G cell phone SIM card, no change of original dialing habit, easy to use.
5. Widely Used: GSM caller is suitable for remote villages, mountainous areas, houses with weak signals, public telephone stores, offices, telemarketing, ships and other mobile places.
Specification:
Item Type: Fixed Wireless Terminal
Material: ABS
Product Size: LxWxH, Approx. 16.2 x 10 x 3.8cm 6.4 x 3.94 x 1.5in ( Manual Measurement, Slight Error May Exist)
Installation: No need to invest in ground wired line, support 4GGSM cell phone SIM card. Easy installation
Voice Services: Support International and Domestic, Local, FixedMobile Voice Services
Operation: Do Not Change the Original Dialing Habits, and the Operation Habits of Ordinary Telephone Landlines Are the Same
Antipodal Signal: With Antipodal Signal, Can Be Connected to the Fare Register or Use a Computer Fare Register.
Watchdog: Inbuilt Watchdog Circuit on Duty. Automatically Detects the Running Status of the Device, and Restarts Automatically when a Fault Occurs
No Error: DTMF Transmission Mode, the Caller ID Error is 0
IP Function: Automatic IP Function, Multiple Groups of IP Settings
Calling Party: Calling Party IP Prefix of Fixed Long Distance Calling, Such As 17951, 17911, and 193, etc.
Permission Setting: Permission Setting of Incoming Call of International, National, and Local Calls
Code Preset: Preset Local Area Code, Local Number Segment, and Forbidden Number or Number Segment
Encryption Settings: Such As PIN, PUK Encryption Machine Card Locking Function
LED Lights: Display Signal, Standby State, Working State and Other Information
Caller ID: Yes
Interface form: RJ11
TDD: B38B40B41
WCDMA: B1B8
GSM: B3B8
EC25 AF:
LTE FDD: B2B4B5B12B13B14B66B71
WCDMA: B2B4B5
LTE FDD: B1B2B3B4B5B7B8B28
LTE TDD: B40
WCDMA: B1B2B5B8
GSM: B2B3B5B8
Recording Function: None
Signal Sensitivity: <-104DBM
Transmit Power: <2W
Antenna Power: >1.5db
Power Supply: 5V 1A
Equipment Power: <5W
RJ11 Dial Tone Frequency: 450HZ
RJ11 Feed Current: 20MA to 40mA
RJ11 Reversed Polarity: Supported
RJ11 Call: DTMF
Working Environment Temperature: Minus 20 celsius to 50 celsius
Operating Environment Relative Humidity: 10 to 90percent .

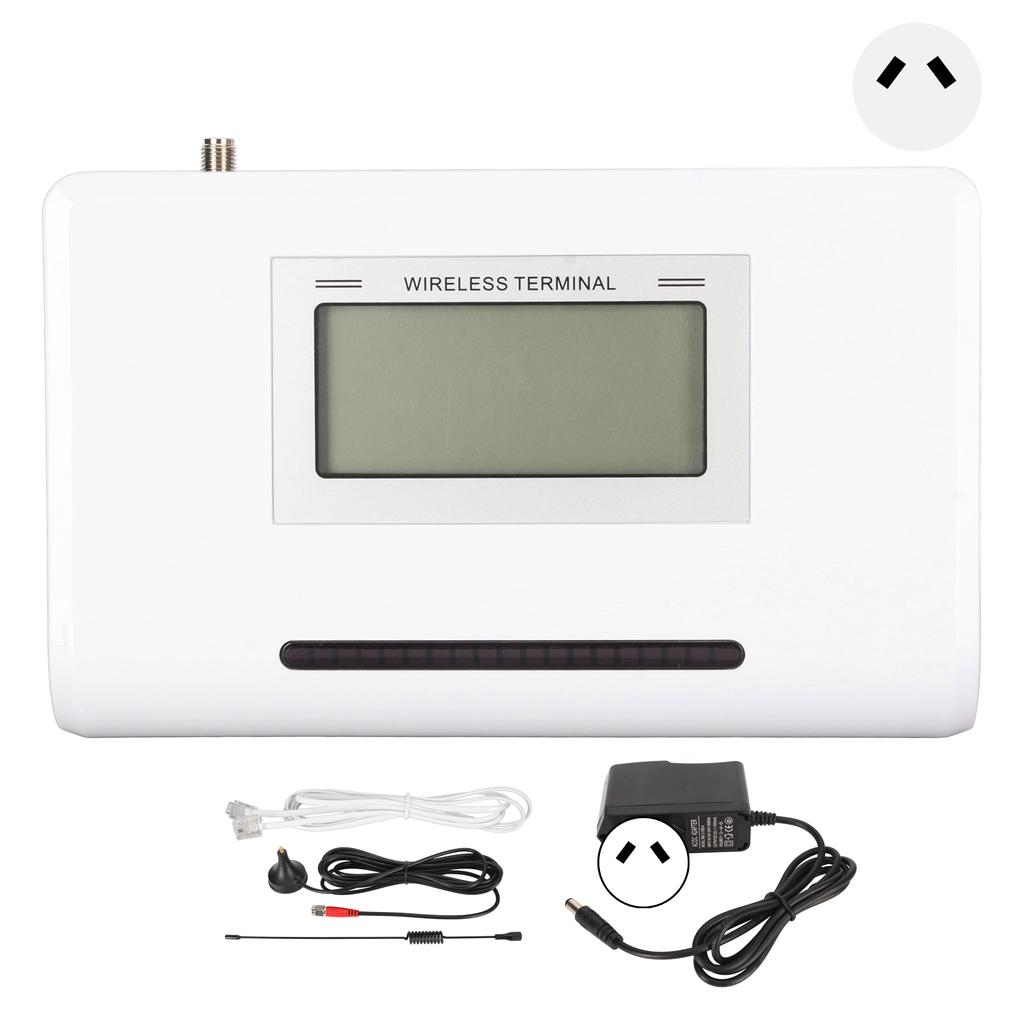

Package List:
1 x Fixed Wireless Terminal1 x Power Plug1 x Antenna1 x Antenna Receiver1 x Phone Line1 x User Manual
