Overview:
DY-SV5W is an intelligent voice module independently developed by our company. It integrates IO segment trigger, UART serial control, ONE_line single-bus serial control, standard MP3 and other 7 working modes, simple dial switch settings; onboard 5W class D Power amplifier, can directly drive 4Ω, 3~5W speakers; support MP3, WAV decoding format, maximum support 32G TF card storage, can be connected to the computer via USB cable to update the TF card storage audio files.
characteristic:
1. Support MP3, WAV decoding format.
2. Support sampling rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48.
3. 24-bit DAC output, dynamic range support 90dB, signal-to-noise ratio support 85dB.
4. Fully support FAT16/FAT32 file system, maximum support 32G TF card.
5. Comes with 5W Class D power amplifier, which can directly drive 4Ω, 3~5W speakers.
6. The UART serial port controls the voice broadcast function, which can control the functions of playing, pausing, selecting music, adding and subtracting the volume, the maximum selection of 65535 tracks, the baud rate is 9600bit/s.

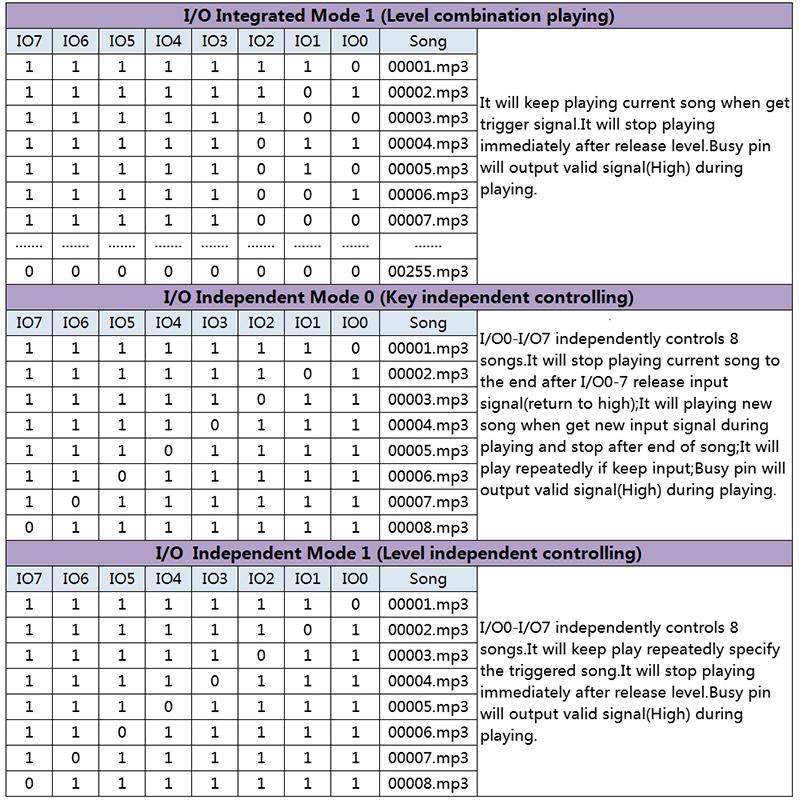

7. Supports IO trigger playback function, 8 IO ports individually trigger 8 tracks or 8 IO ports combined to trigger 255 tracks.
8. Support One_line single-bus serial port control, which can control functions such as play, pause, song selection, volume increase and decrease.
9. It supports 3 configuration IOs to select up to 7 working modes, and the DIP switch setting is simple.
Parameters:
1.Product Name:DY-SV5W Voice Playback Module
2.Product Number:DY-SV5W
3.Work Voltage:DC 5V
4.Working Temperature range:-20~85 Celsuis
5.Working Humidity range: 0%-95%RH
Package:
1pc DY-SV5W Voice Playback Module
