Features and Benefits:
Suitable for truck, generators/gen set, bus and marine field.
Widely used in fuel, water, kerosene and chemical tanks.
Reed switch, steady output signal.
Simple and stronge structure , Advanced corrosion resistance.
Long using life, anti-vibration,anti-explosion.High quality fuel level senser.
Economical level sensing solution, long service lifespan.
Without limitation of environment,length can be customized
Damping cover is optional, and assembled with C-ring, easy for installation
Specification
Material: 316 Stainless Steel
Length: 150mm
Mounting Methods: Standard SAE 5 hole pattern
Protection Rank: IP67
Output Signal: Standard European 0-190 ohms
Resolution Range: 10-40mm
Operational Temperature: -40 ~ +85 Celsius
Screw size: M5
Notice:
1. Please allow 1-3mm error due to manual measurement.Pls make sure you do not mind before you bid.
2. The color may have different as the difference display,pls understand.

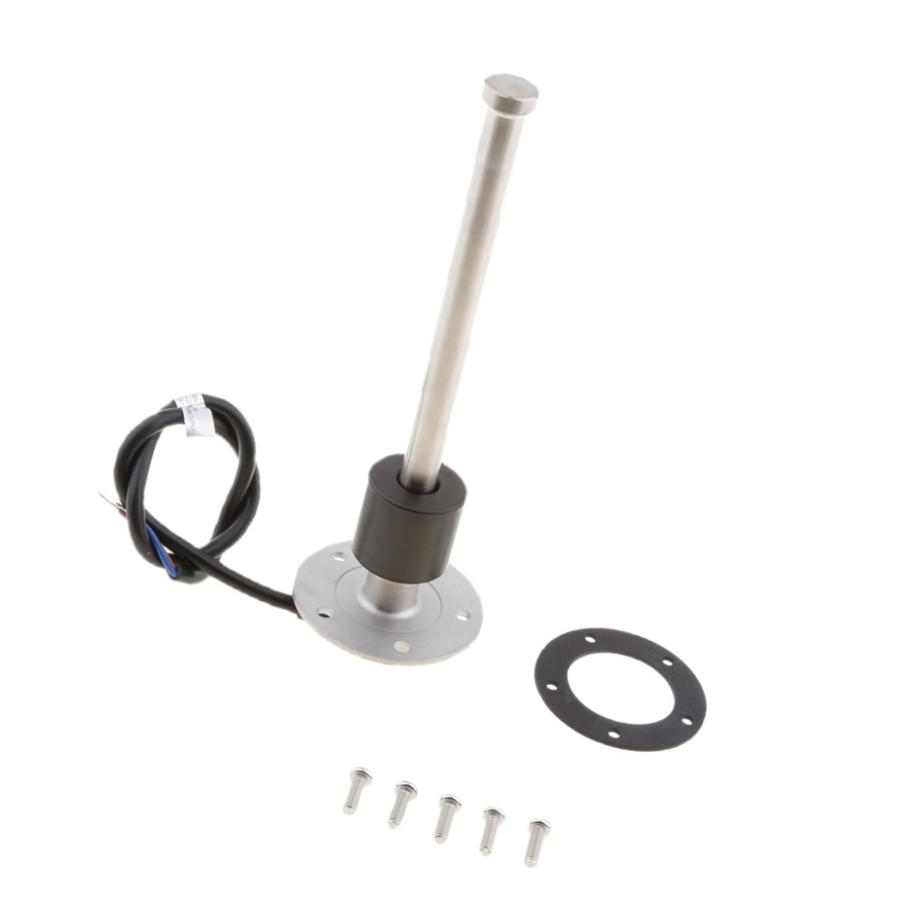

Package Included:

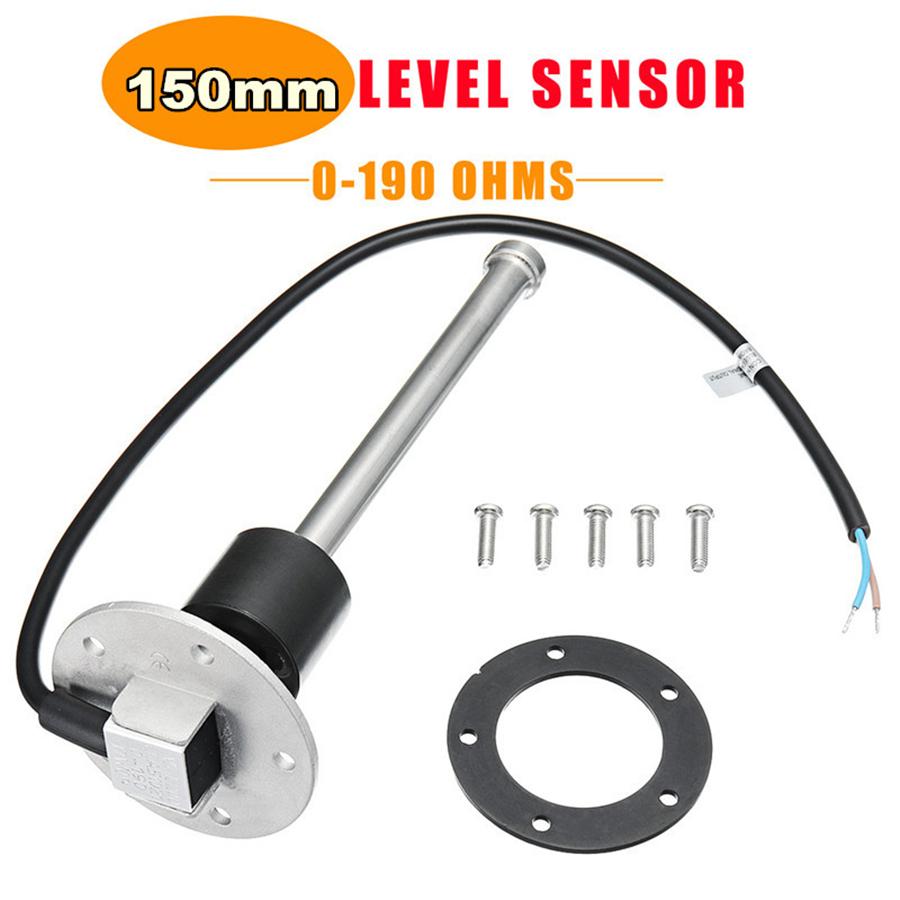

1 x 150mm Water Fuel Level Sender

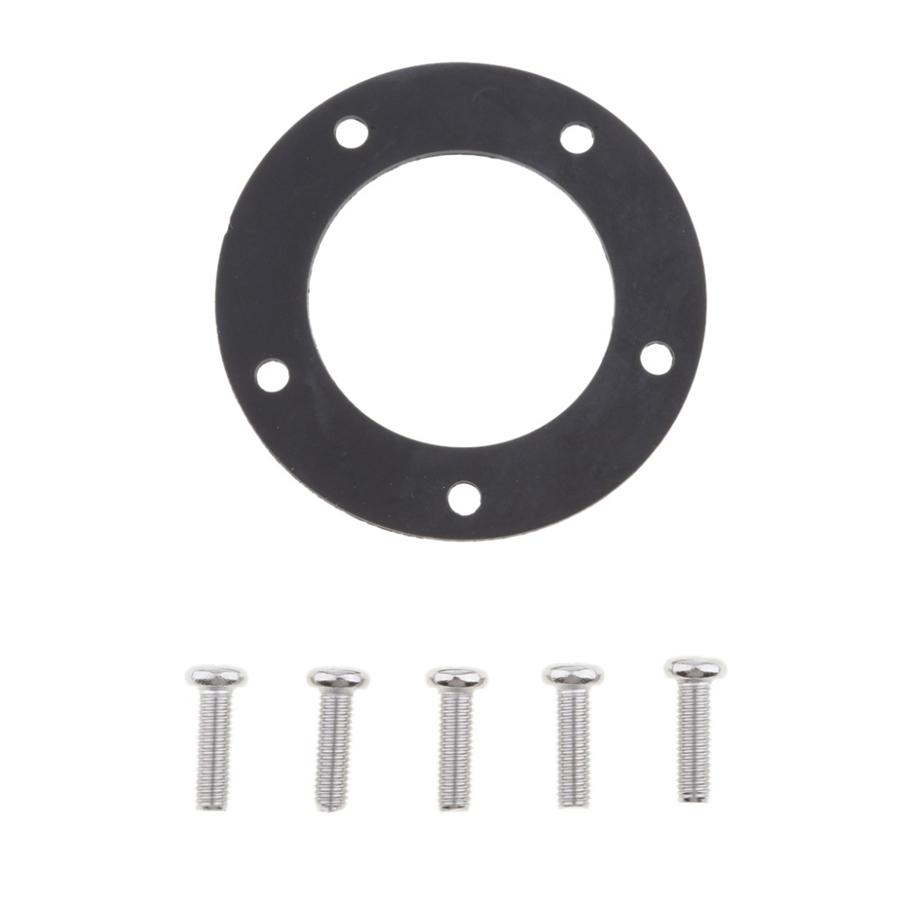

1 x 2 mm thick NBR gasket.
5 x M5 screws
